KF Series High Vacuum Charge Valves
his series of valves are made up of manual and electromaanetic charae valves, They play air inflation role in hichvacuum pipe line. They have many advantages, such as sm all size, durability, great sealing, and long service lifeand so on. As a result. they are one of initial optional valves in automatic vacuum eauipment, The motivities of thisseries of valves are manual rotating handle and electromaanetic force which can drive the valve cores to makevalves' start and stop. Applicable medium can be pure air and non-corrosive gas.
- Commodity name： KF Series High Vacuum Charge Valves
If you cannot find what you need, we support OEM/ODM
- Details
-
Brief Introduction:
This series of valves are made up of manual and electromaanetic charae valves, They play air inflation role in hichvacuum pipe line. They have many advantages, such as sm all size, durability, great sealing, and long service lifeand so on. As a result. they are one of initial optional valves in automatic vacuum eauipment, The motivities of thisseries of valves are manual rotating handle and electromaanetic force which can drive the valve cores to makevalves' start and stop. Applicable medium can be pure air and non-corrosive gas.
Features:
□ Simple structure and easy to change and maintain.
□ Easy to clean up.
Main Capacity Targets :
Application scope:1x10-5Pa~1.2x105Pa
Differential pressure before open valve plates :≤1.2x105Pa
Leak rate of valves' body and base: 1.3x10-7Pa.L.s-1
Cycles until frst service: 200，000 times
Baking Temperate of valve bodies: 80C
Position of installation: KF flange position
Power supply(only supply to electromagnetic valves):AC 220V 50Hz、15Wor DC 24V、6W
(Special specification can be customized)
Speed of closing or opening:
electromagnetic alves: ≤05sValves' weight: referring to the above table

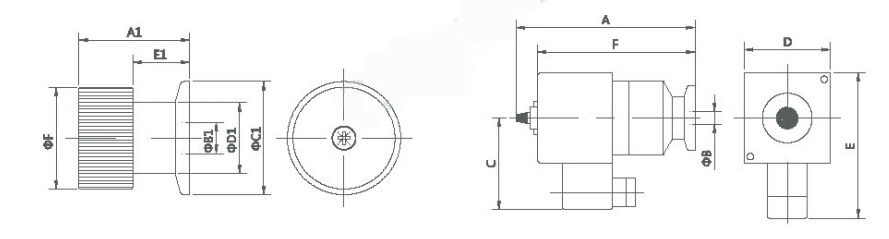

Manual Stainless steel body Electromagnetic Stainless Steel body

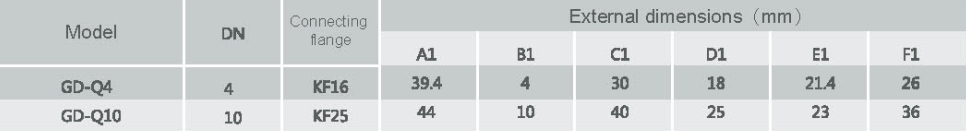

Manual:

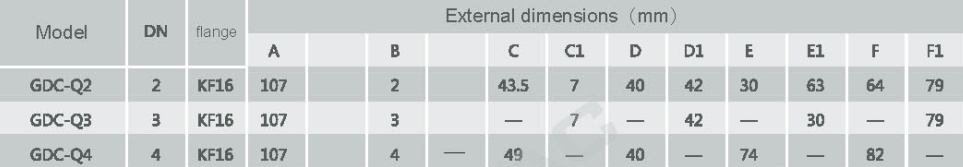

Electromagnetic:
Remark: A1-F1 is for Stainless steel valve size, A-F is for Aluminum valve size
