Ultra-High Vacuum Adjustable Gate valve
- Commodity name： Ultra-High Vacuum Adjustable Gate valve
If you cannot find what you need, we support OEM/ODM
- Details
-
BriefIntroduction:
This series ofvalves are made up of gate valves with stepping motor. The design of this series' structure isreasonable, and the appearance is excellent. Besides, they have many advantages, such as high precision, longservice life and so on. As a result, they are widely used in ultra-high vacuum equipments where current flow needs tobe controlled by Valve's open level. The motivities of this series of valves are stepping motor, and the transmissionrod pulls the connecting rod, eading the driver's axial movement. They drive the start and stop of valve platesthrough the connection between swing bar and valve plate. Throttled by valve, driven by driver, stepping motorand controller. The controller offers a position contrl model which allows the valve to control the speed at anyoosition when the valve is open or close. The power supply controller can be controlled manually, and it is pulsesignal which controls the power supply so as to acquire a high speed and an exact location. Applicable mediumcan be pure air and non-corrosive qas
Features：
Adopt stainless steel bellows and viton o- ring sealing, no lube
The inner of valves' body is welded by stainless steel and the leak rate is low
Valve bodies design in rib structure, with small sizes, light weight and excellent appearance.
Adopt double-guide-rail structure, sm ooth movement; monolithic construction inside the valve andwell-distributed holding power.
Driven by stepping motor, the position of valve open plate can be controlled optionally and thethrottle can be controlled.

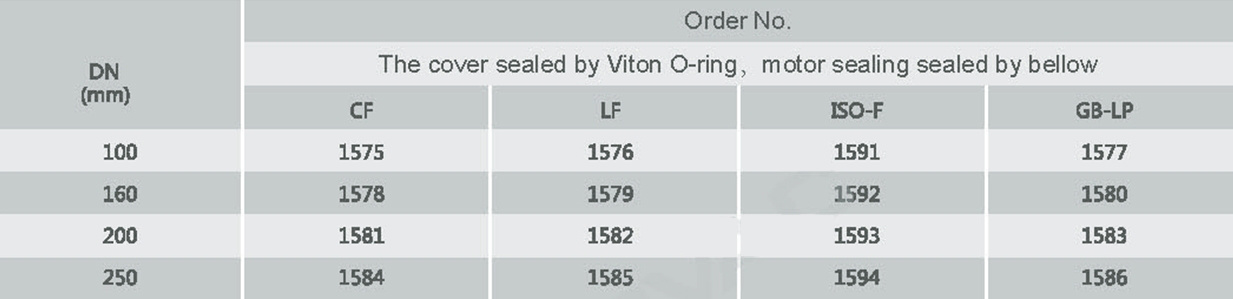

Order information:
Main Capacity Targets :
□ Application scope:1x10-6Pa~1.2x105Pa (the coversealed by Viton O-ring)
□ Differential pressure before open valve plates :≤3x103Pa Any direction
□ Cycles until first service: 10，000 times
□ Baking temperature ofvalve body: open≤200 C : close≤150 ℃
□ Position of installation : Any.
□ Power supply: AC220V 50Hz orDC <50V、max current 5.5A
□ Speed of dosing or opening :Any
□ Indications ofvalve's position : with indication of start and stop'spositions (micro switch) ，other positions are controlled by pulse
□ Weight : refer to Weight Brochure .

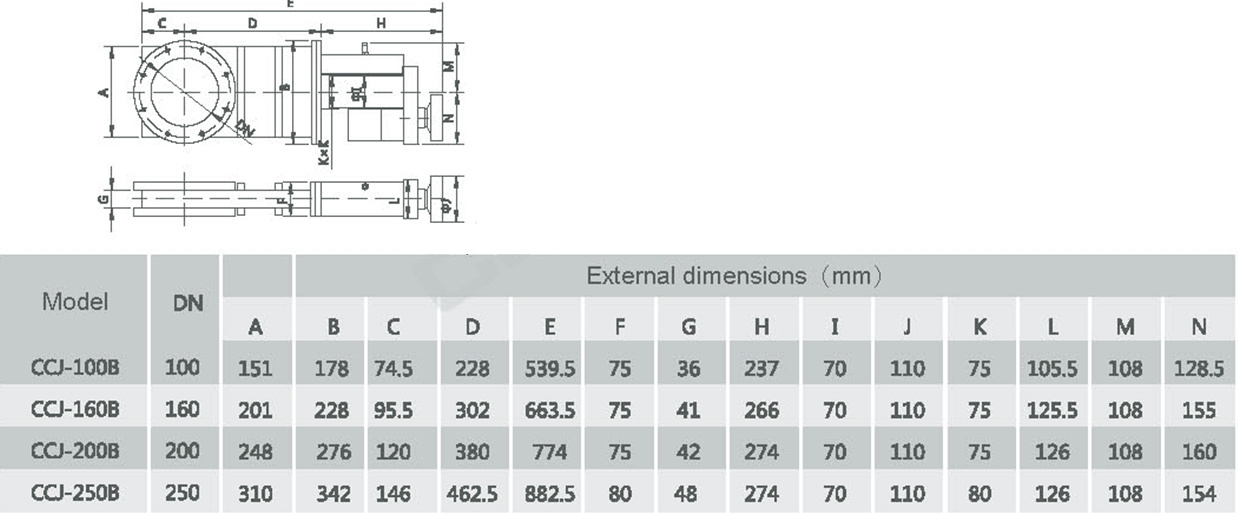

External Dimensions：

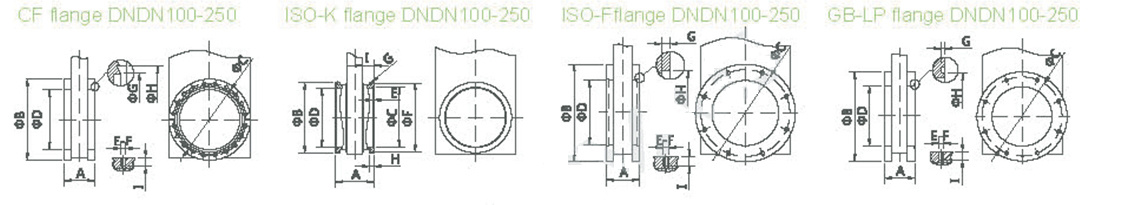

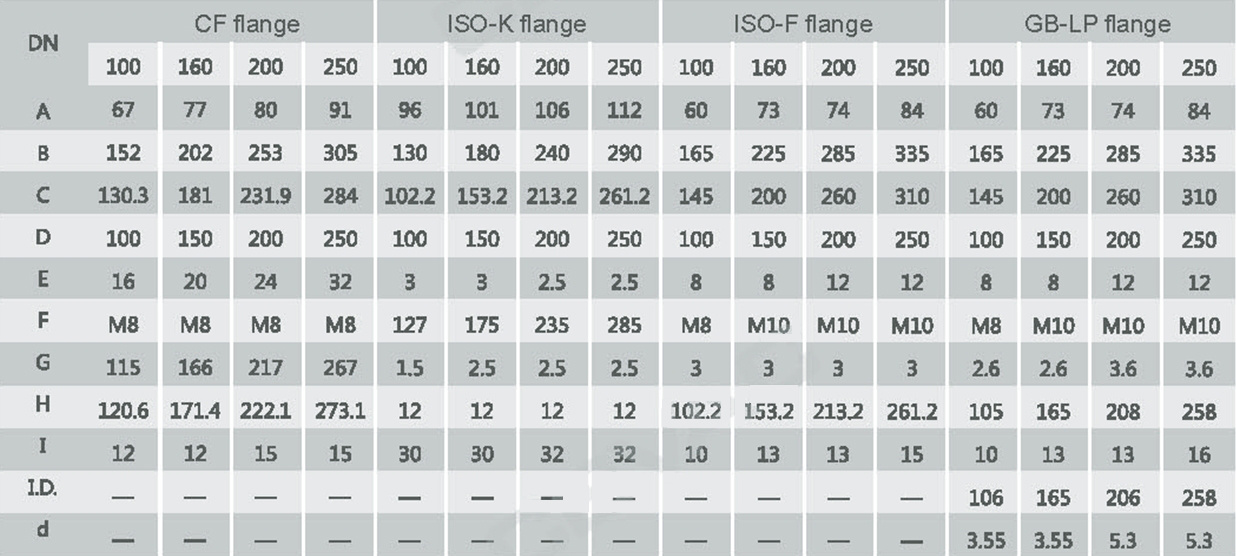

Flange size :
说明页内容……
