CF Series Ultra-high Vacuum Angle Valves
This series valves are applicable to the vacuum line's start and stop of ultra-high vacuum system. They aretwo diferent vacuum block valves: these are manual ones and pneumatic ones. They have many advantagessuch as stability, durability, great sealing, and long service life and so on, so they are one of initial optionalvalves in ultra-high vacuum equipm ent. Manual valves take manual rotating handle as motivity, and helicaltransmission to make valves start and stop. The direction of start and stop takes marks on the handles as thestandard. Pneumatic valves take compressed air as motivity to make valves start and stop. Valve plates wilclose automatically depending on spring force when losing air source. Applicable medium can be pure air andnon-corrosive gas.
- Commodity name： CF Series Ultra-high Vacuum Angle Valves
If you cannot find what you need, we support OEM/ODM
- Details
-
Brief ntroduction:
This series valves are applicable to the vacuum line's start and stop of ultra-high vacuum system. They aretwo diferent vacuum block valves: these are manual ones and pneumatic ones. They have many advantagessuch as stability, durability, great sealing, and long service life and so on, so they are one of initial optionalvalves in ultra-high vacuum equipm ent. Manual valves take manual rotating handle as motivity, and helicaltransmission to make valves start and stop. The direction of start and stop takes marks on the handles as thestandard. Pneumatic valves take compressed air as motivity to make valves start and stop. Valve plates wilclose automatically depending on spring force when losing air source. Applicable medium can be pure air andnon-corrosive gas.
Features：
□ Standardized and modular design,easy to change and maintain.
□ Easy to clean up.
□ Adopt stainless steel bellows and vton O-ring, no lube.
□ Stainless steel valve body with inside welding,lower leak rate

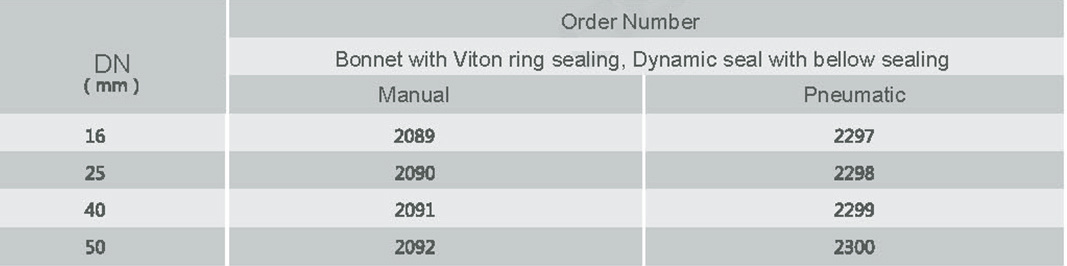

Order Number:
Main Capacity Targets :
□ Application scope:1x10-6Pa~1.2x105Pag
□ Differential pressure before open valve plates:≤1.2x105Pa Any direction
□ Leak rate of valves' body and base:
□ Cycles until frst service: 800，000 times 13x10-7Pa.L.s-1□ Baking Temperate ofvalve bodies: Open≤200℃ ; Close≤150℃
□ Position ofinstallation: Any direction
□ Power supply AC 220V 50Hz、6Wor DC 24V、3W(Special request can be customized)
□ Compressed air(only supply to pneumatic valves): 0.4~0.7MPa
□ Speed of closing or opening (only for pneumatic valves): ≤1s
□ Indications of valves' position
-manual valves: with indication of start and stop's positions
-pneumatic valves: with indication of start and stop's positions(magnet switch)
□ Valves' weight: Referring to the above table.

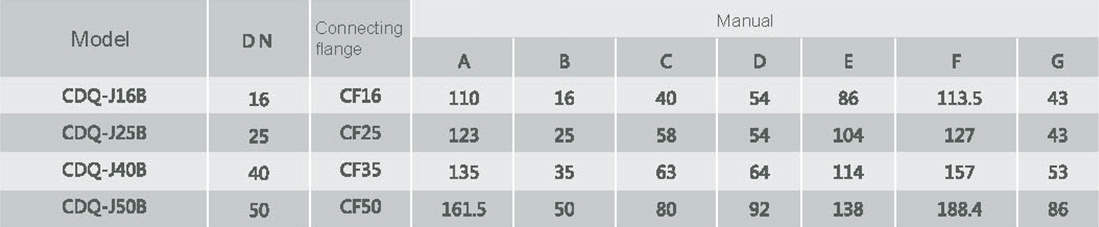

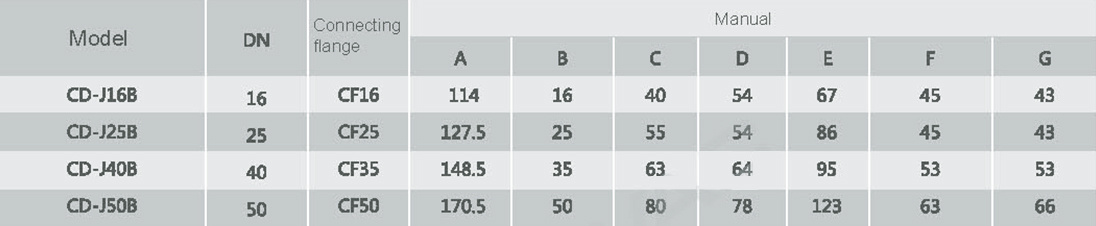

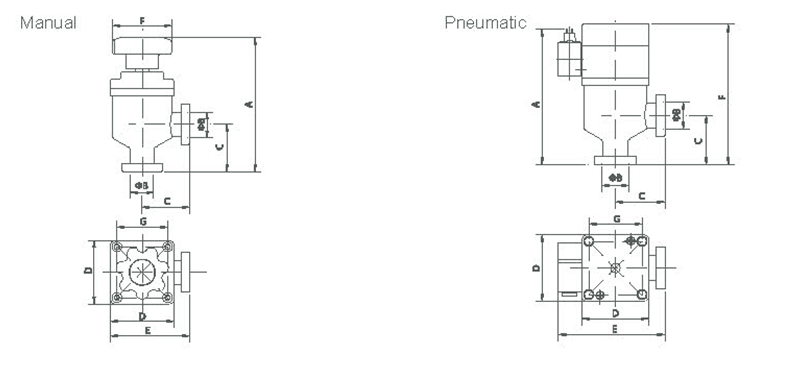

External Dimensions:
Manual:
Pneumatic:
CF fange are subject to the standard GB/T 6071-2003
Optional Parts:
Magnet switch.
