Flanges And Fittings
Use bolts to connect the fanges, and oxygen-free copper gaskets to seal it, check the sketch.
- Commodity name： Flanges And Fittings
If you cannot find what you need, we support OEM/ODM
- Details
-

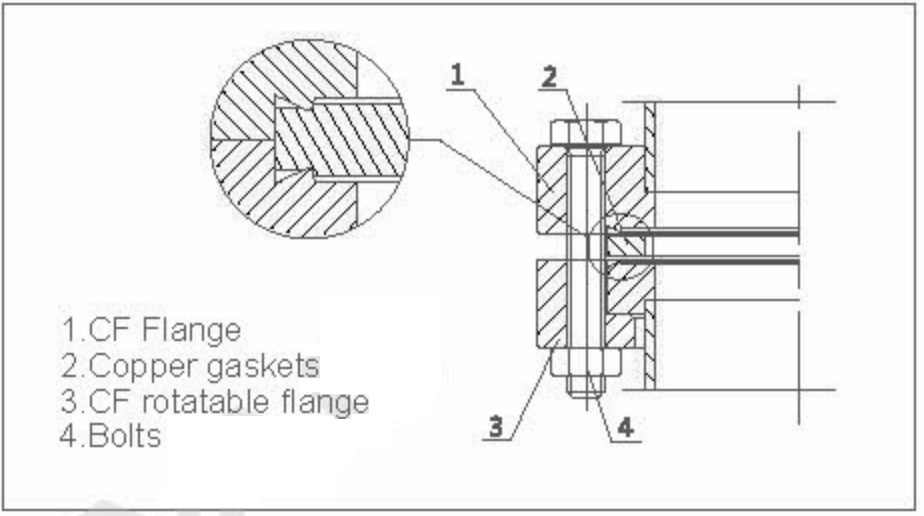

1.CF Flange Connection
Use bolts to connect the fanges, and oxygen-free copper gaskets to seal it, check the sketch.
2.KF Flange Connection

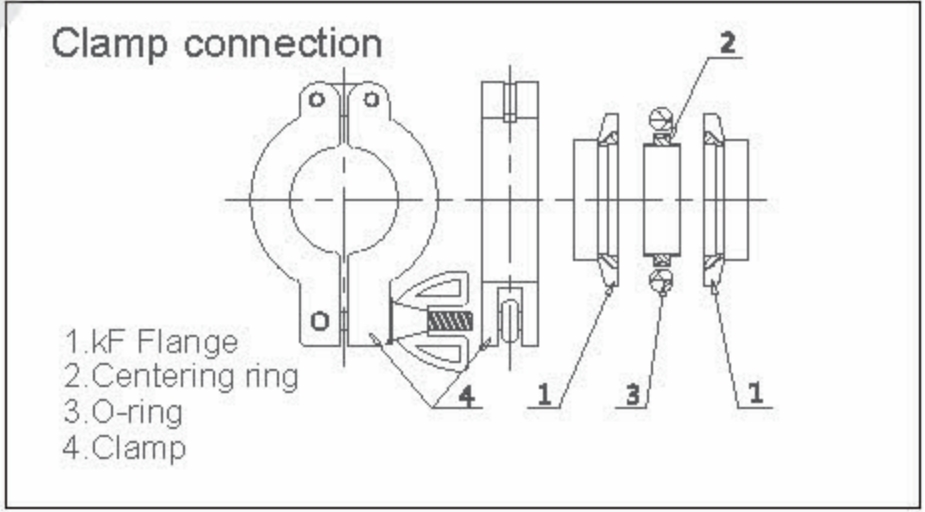

a.Clamp connection: use clamp to connect the flange.use centering ring and o-ring to seal it, check the sketch

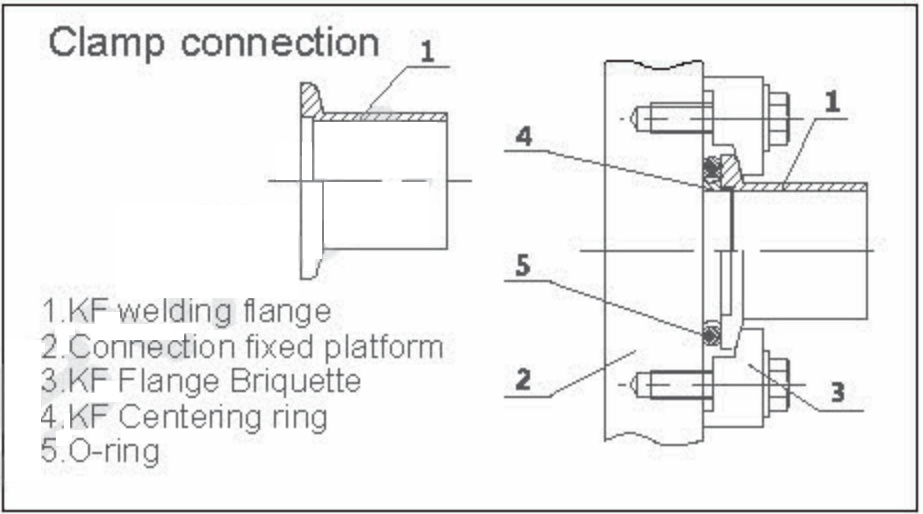

b.Bolts connection: use KF Flange Briquette to connectthe flange, use centering ring and o-ring to seal it, checkthe sketch.
3.ISO-K Flange Connection

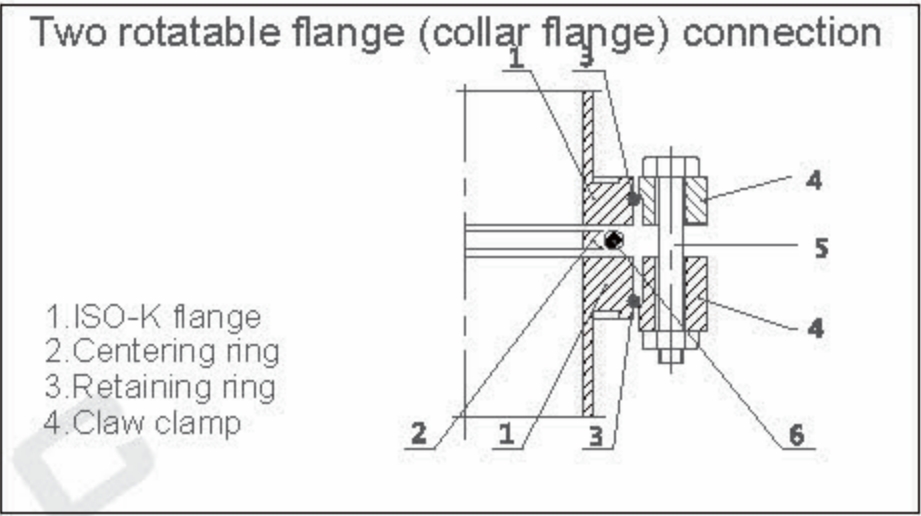

a.Use two rotatable fange (collar flange): use boltsto connect the flange via collar flange, use centeringring and o-ring to seal it, check the sketch.

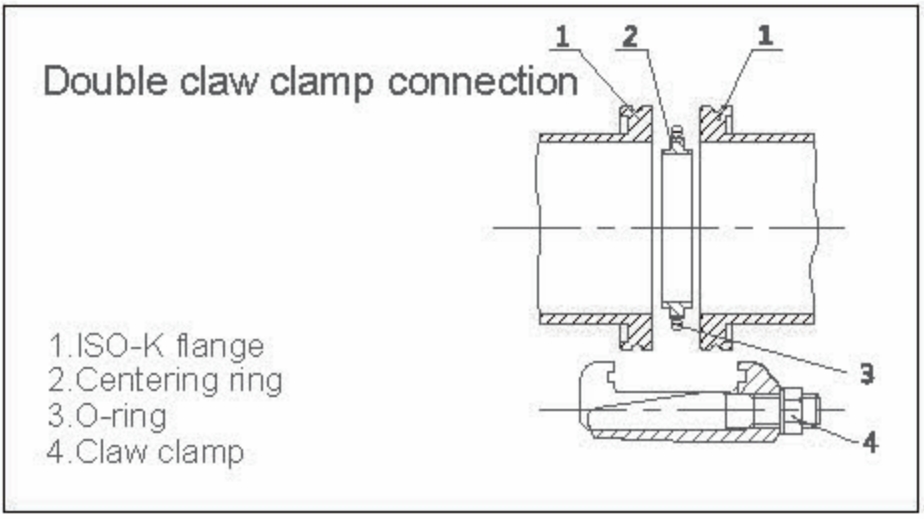

b.Use double claw clamp: use double claw clamp toconnect the fange, use centering ring and o-ring toseal it, check the sketch.

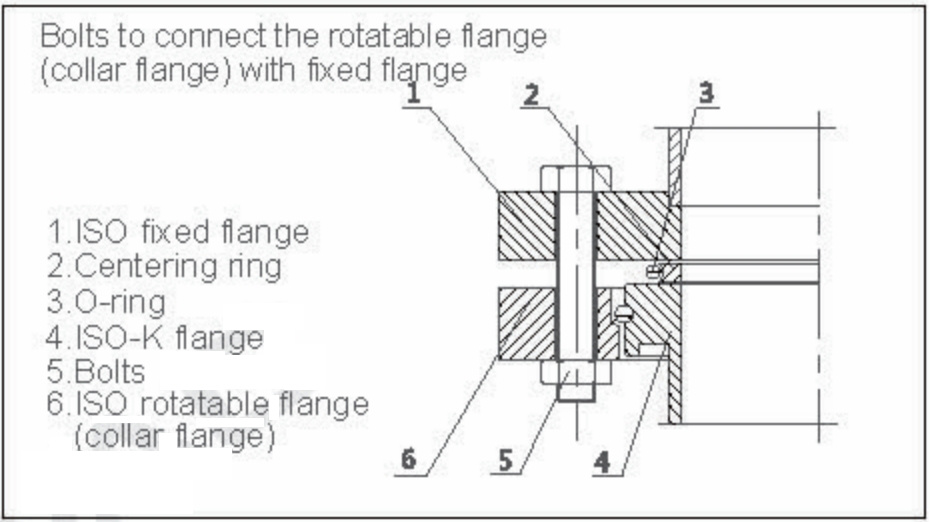

c.Use bolts to connect the rotatable flange(collar flange) with fixed flange: collar fange and fixedfilange match each other, use centering ring and o-ringto seal it, check the sketch.
说明页内容……
