- Commodity name： Cx2 Gas Seal Plug
If you cannot find what you need, we support OEM/ODM
- Details
-
Brief Introduction
As a connector used for the current input to the vacuum chamber (pipe), connect the electronic devices andpower supply, electrical inter-connection. Or connect the electrical wires and cables.
Characteristics
Military standard,good performance, easy installation, small size and low cost.

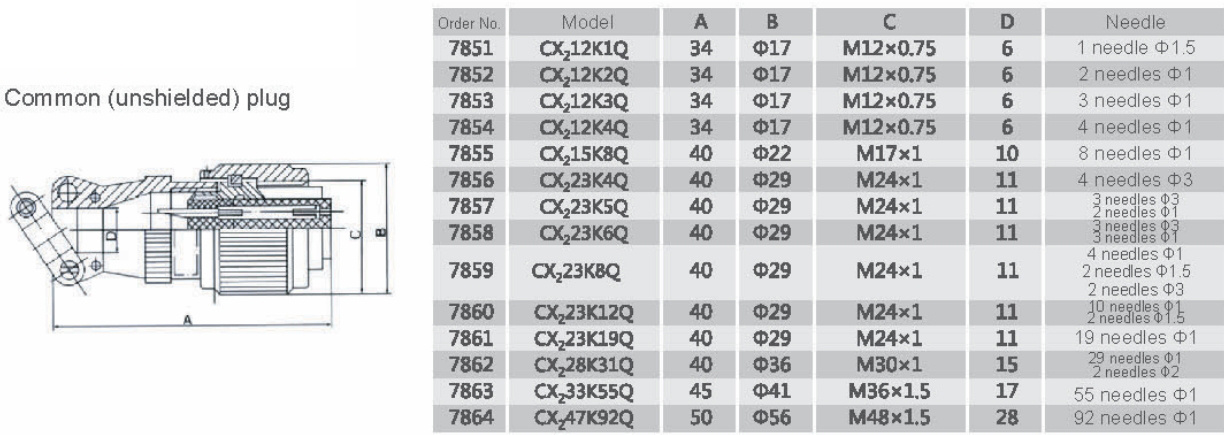

Order No.
You can get the Order No. from the following table according to the needle number of the plug.
Order Example:7852
CX2 Gas seal common Plug,2 needles diameterΦ1
Major Capacity Targets
□ Rated voltage:220V
□ Insulated resistance: 21000MQ(500V、DC)
□ Pressure-proof:1000V
□ Leak tightness：When the pressure=1.33x10-4Pa,Air leakage≤1Pa.cm3/s
□ Operation times:500 times

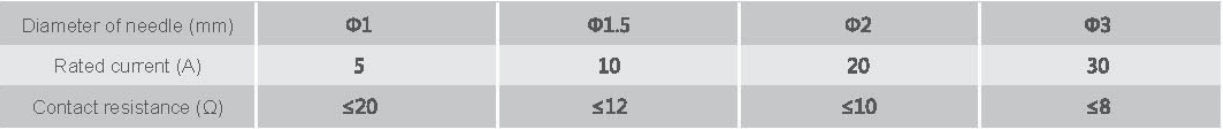

□ Rated current and contact resistance
Remark: Each needle has the rated current as follows according to the number of needle.
The rated current will be 100% ifwith 1~16 needles.The rated current will be 80% if with 17-32 needles
The rated current will be 70% if with 33-55 needles.The rated current will be 60% if with 56-96 needles

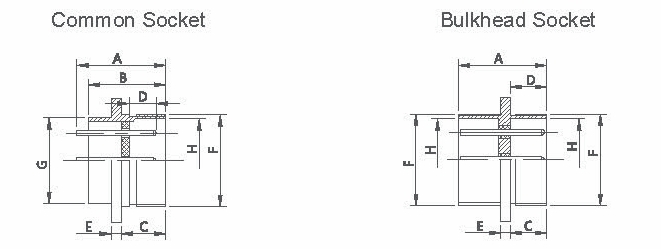

Installation and Externa Dimensions

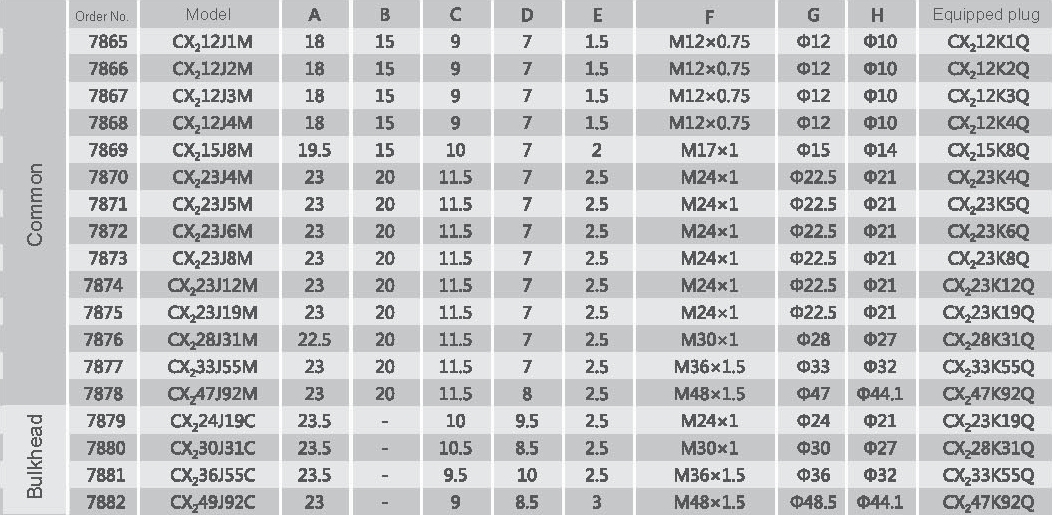

Socket

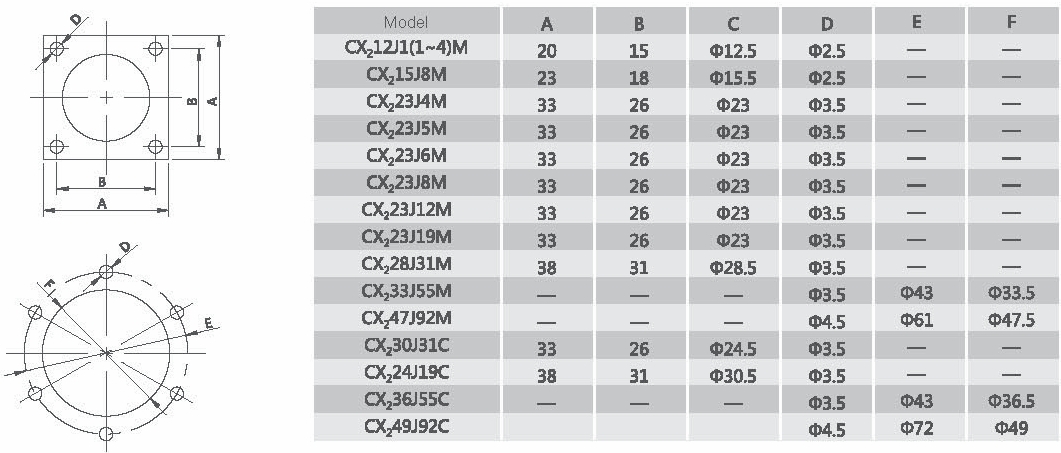

Installation dimension with the holes
