- Commodity name： Metal Flexible Hoses
If you cannot find what you need, we support OEM/ODM
- Details
-
Brief Introduction
Liquid metal flexible hose is composed by corrugated pipe, net cover, joint or corrugated pipe and joint. Metaiexible hose is mainly used for line pipe, absorbing Piping thermal expansion and cold shrink or ground vibrationand sinking and reciprocating displacement,etc
Type
□ Threaded connections

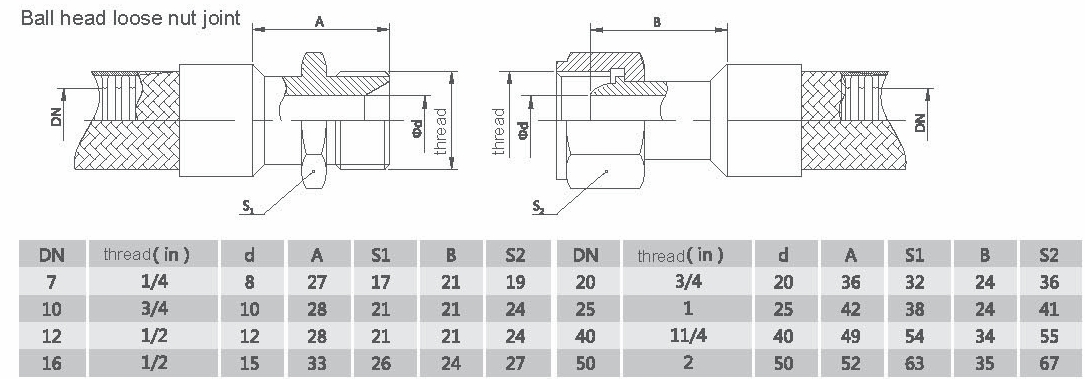

Joint type: ball head loose nut, conical surface loose nut , inner/outer thread, Any oil and surface seal etc
□ Flange connections
Flange type: fixed/oose flange, welding flange. double insulation bellows and vacuum flange (see flange fitings). etc
□ Cutting sleeve joint
Joint type: quick connector and welding tube,etcAll above. the materials of bellows, net cover and joint are 304 stainless steel.also we can choose the materialsaccording to the requirements of customers.
Specifications and dimensions

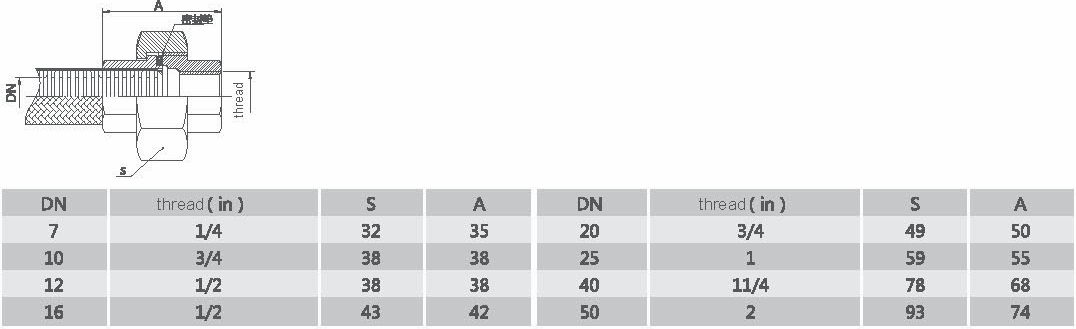

Conical surfaceloose nut joint

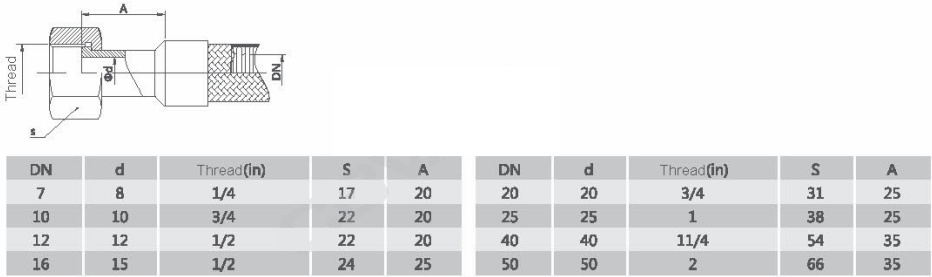

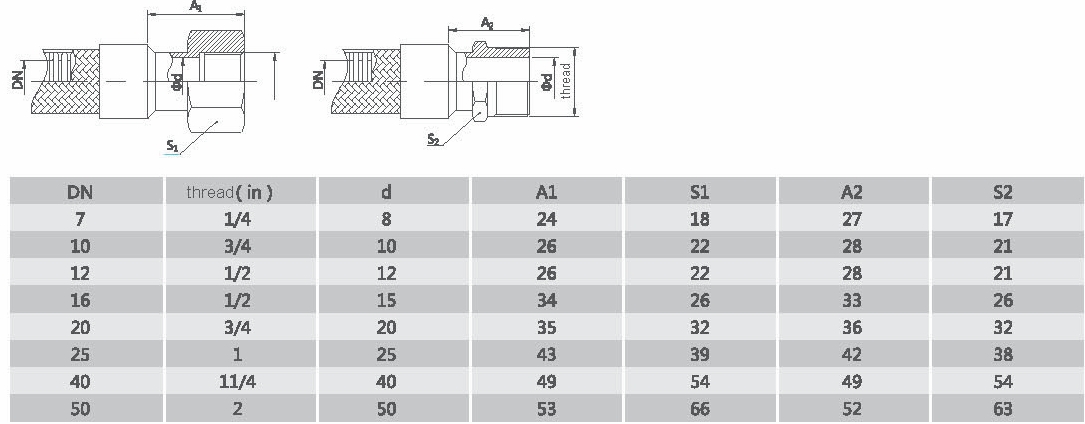

Inner/outer thread joint
Any oil joint
Surface seal joint

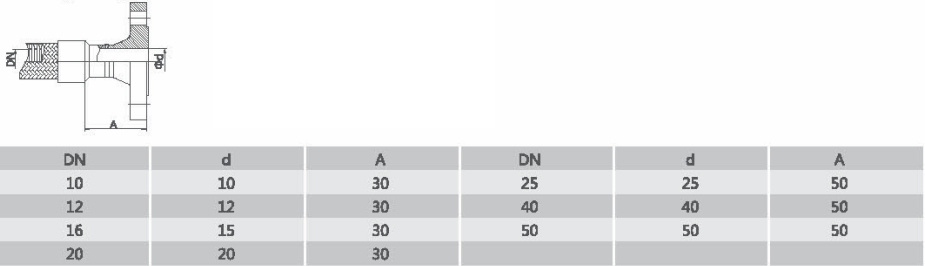

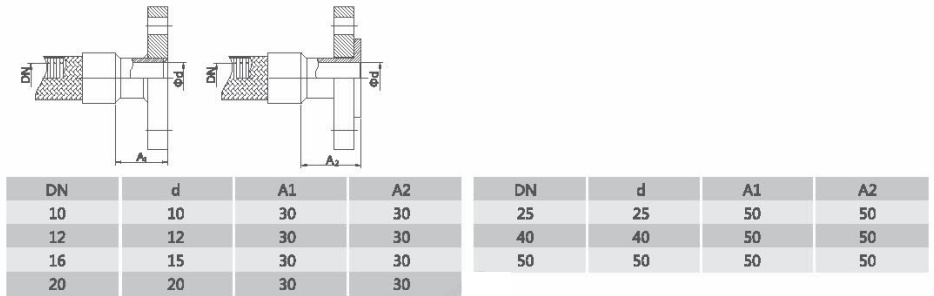

Fixed/loose flange
Welding flange

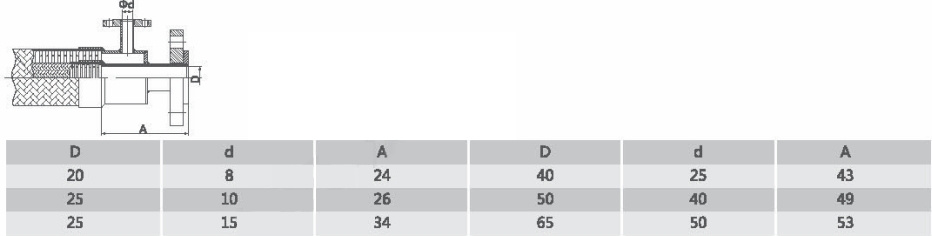

Double insulation bellows

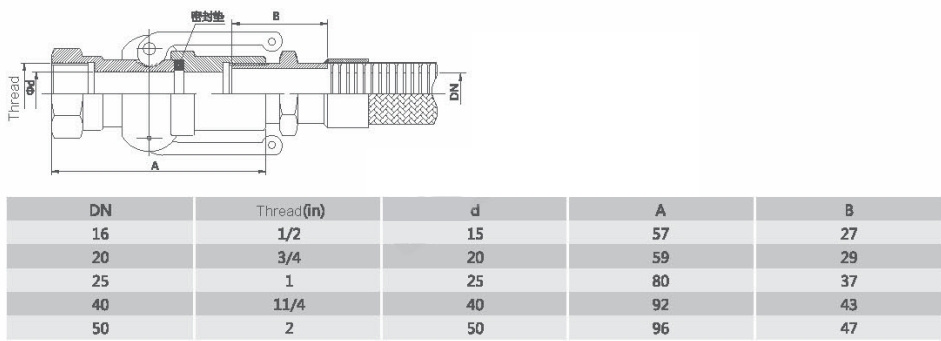

Quick connector

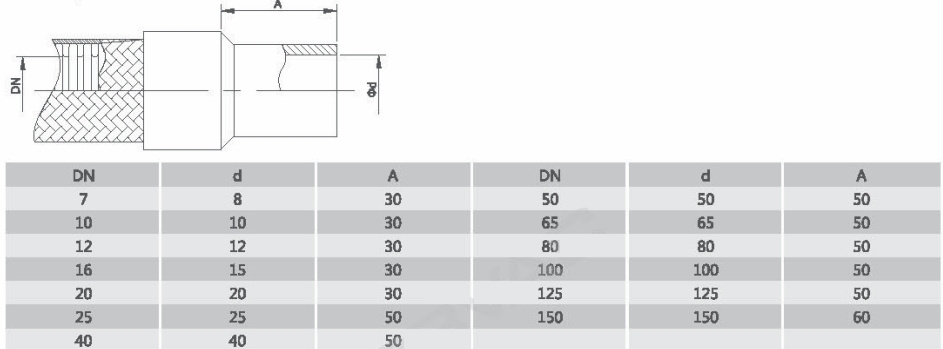

Welding tube
